 Product name:

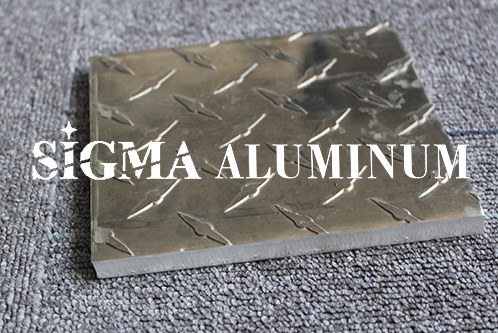

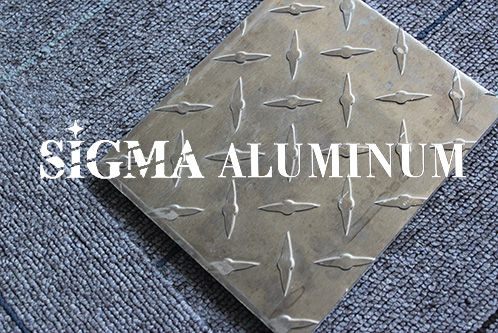

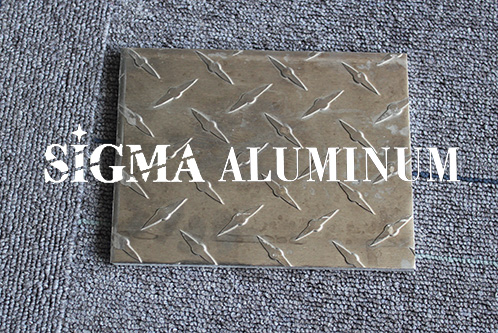

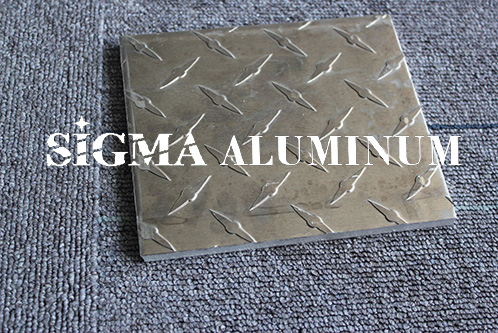

6061 T6 T651 aluminum diamond plate
Quick Details:
Grade: DC material
Temper: T6 T651
Type: Plate
Application: Construction
Thickness: 2.0-12.0mm
Width: 500-1250mm
Surface Treatment: Embossed
Alloy or Not: Is Alloy
Place of Origin: Henan, China (Mainland)
Brand Name: SIGMA
Model Number: 6061
Certification: ISO9001:2008
Standard: GB/T3880
Export to: Australia, Canada, India etc.
6061 Chemistry Composition:

Element Si Fe Cu Mn Mg Cr Zn Ti Al
Standard value  0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 Balance

Performance and Application:
6061 - Very good corrosion-resistance and finishability plus excellent weldability and a strength level approximating that of mild steel, this is a popular general-purpose alloy. Machinability is good and, in the annealed state, its workability carries a high rating, staying at the "good" level if heat-treated without aging.
Application:
Typical end uses are aircraft landing mats, large and small marine vessels, structural architectural parts, storage tanks and highway signs.

T6 - Solution heat-treated and artificially aged. A stable temper.
T651 - Solution heat treated, stress-relieved by stretching and artificially aged. Equivalent to T6 and applies to plate and rolled bar except 2219.
